Introduction

1200w MANUAL AIR FRYER with Silicone Baking Cups and Trivet
Model CCXM22 Instructions & Recipes

The Farberware CCXM22 AIR FRYER makes cooking quick, convenient and most importantly— healthy. By using rapid hot air convection cooking techologies, the AIR FRYER evenly circulates hot air to cook fresh or frozen foods, giving them the same crunchy bite and moist interiors produced by conventional deep fryers. And food is never submerged in cooking oils or fats while cooking. The AIR FRYER can bake, broil and steam a wide variety of foods, such as meats, vegetables, pizzas and even cakes. Get started with the great recipes that follow—and enjoy!

Farberware CCXM22 Overview

Farberware CCXM22 Overview

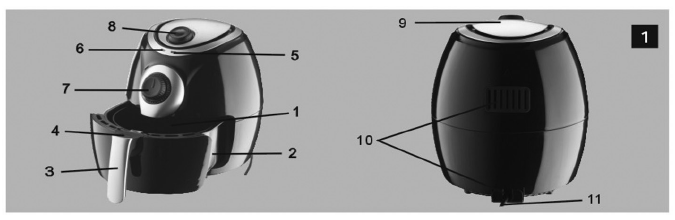

General description (Fig.1)

  1. Basket
  2. Pan
  3. Basket handle
  4. Basket release button
  5. Heating-up light
  6. Power-on light
  7. Timer/Power-on knob (175–400°F)
  8. Temperature control knob
  9. Air inlet
  10. Air outlets
  11. Power cord

Farberware CCXM22 Cooking programs

Automatic Switch-off

The appliance has a built-in timer. It will automatically shut off the appliance when it has counted to zero. You can manually switch off the appliance by turning the timer knob counter-clockwise to zero.
Before First Use

  1. Remove all packaging materials, stickers and labels.
  2. Clean the basket and pan with hot water, dishwashing liquid, and a non-abrasive sponge.
  3. Wipe the inside and outside of the appliance with a cloth. There is no need to fill the pan with oil or frying fat since the appliance works using hot air.

Using the Appliance

  1. Place the appliance on a stable, horizontal and even surface.
  2. Remove the pan with the basket in it from the AIR FRYER.
  3. Place the ingredients in the basket. NOTE: Do not overfill the basket (for amounts, see “Settings” chart on the inside back cover), as it may affect the quality of the food.
  4. Slide the pan back into the AIR FRYER. Never use the pan without the basket in it. Farberware CCXM22 Cooking programs Farberware CCXM22 Cooking

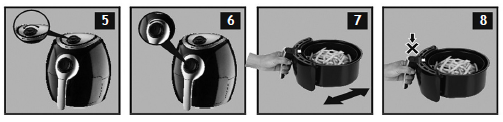

  5. Turn the temperature control knob to the proper temperature (fig.5). See “Settings” chart on the inside back cover.
  6. Determine the required preparation time for the ingredient. See “Settings” chart on the inside back cover.
  7. To switch on the appliance, turn the timer knob to the required preparation time (fig.6). Add 3 minutes to preparation time if the appliance is cold. NOTE: If you want, you can also preheat the appliance without any ingredients inside. Turn the timer knob for more than 3 minutes and wait until the RED heating-up light goes out (after about 3 minutes). Then fill the basket and turn the timer knob to the required preparation time.
    a. The GREEN power-on light and the RED heating-up light go on.
    b. The timer starts counting down the set preparation time.
    c. During the cooking cycle, the RED heating-up light will turn off from time to time. This indicates that the temperature has been reached.
    d. Excess liquid from the ingredients is collected in the bottom of the pan. CAUTION: Do not touch the pan during and for 30 minutes after use,
    because it gets very hot. Hold the pan ONLY by the handle.
  8. Some ingredients require shaking halfway during the preparation time (see “Settings” chart on the inside back cover). At the halfway point, pull the pan out of the appliance by the handle and shake it (fig.7). Then slide the pan back into the AIR FRYER. CAUTION: Do not press the Basket Release Button on the handle while shaking (fig.8).Farberware CCXM22 Cooking programs3
    1. If there is liquid in the pan, remove the basket from the pan before shaking. To do this, pull the pan out of the appliance.

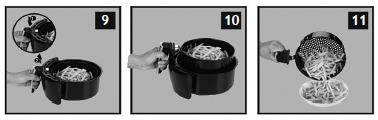

      NOTE: Use caution, as steam may be present. Place it on a heat-proof surface. Press the basket release button before shaking the basket (fig.9). Return the basket to the pan, and slide the pan back into the AIR FRYER.
  9. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-proof surface. NOTE: You can also switch off the appliance manually by turning the temperature control knob to 0.
  10. Check to make sure the ingredients are ready. If the ingredients are not fully cooked, simply slide the pan back into the appliance and set the timer for a few extra minutes.
  11. To remove ingredients, press the basket release button and lift the basket out of the pan (fig.10). The pan and the ingredients are hot after hot air frying. Depending on the moisture content of the ingredients in the fryer, steam may escape from the pan.
  12. Empty the basket into a bowl or onto a plate (fig.11). To remove large or fragile ingredients, lift the ingredients out of the basket using tongs.
  13. When a batch of ingredients is ready, the AIR FRYER is instantly ready for preparing another batch, since it is already pre-heated.

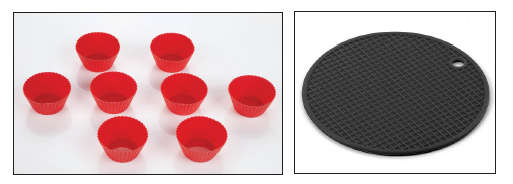

Farberware CCXM22  Accessories

  • A set of 8 silicone baking cups. NOTE: 4 can be used in the AIR FRYER at one time.
  • To protect your work surface, place the hot Basket and/or Pan on the Silicone Trivet whenever they are removed from the AIR FRYER.
  • While the items are dishwasher safe, hand washing is recommended.

Farberware CCXM22  Accessories

Farberware CCXM22 Cleaning

  1. Clean the appliance after every use. Do not clean the pan, basket and the inside of the appliance with any metal kitchen utensils or abrasive cleaning materials, as this may damage the nonstick coating of them.
  2. Remove the main plug from the wall socket and let the appliance cool down for at least 30 minutes. NOTE: Remove the pan to let the AIR FRYER cool down more quickly.
  3. Wipe the outside of the appliance with a moist cloth.
  4. Clean the pan and basket with hot water, some liquid detergent and a non-abrasive sponge. You can remove any remaining food residue with degreasing liquid.
  5. If any food particles are stuck to the basket or the bottom of the pan, fill the pan with hot water with some liquid detergent. Put the basket in the pan and allow them to soak for about 10 minutes.
  6. Clean the inside of the appliance with hot water and a non-abrasive sponge.
  7. Clean the heating element with a cleaning brush to remove any food residue.

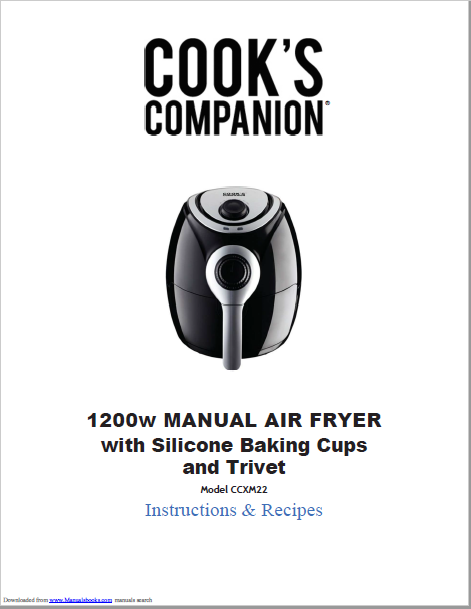

Readmore and Download Farberware CCXM22 User Manual
