Hyundai HD 65, 72 Electrical Troubleshooting Manual

About Hyundai HD 65 Spesification

The Hyundai HD series offer one of the safest and most ergonomic cabs available. It is not just comfortable, it works with the driver. For example, the curved instrument and switch panel layout means less reaching and more instinctive control. Minor controls, cab access, door and grab handles are optimally positioned, and there are ample interior illumination and stowage space. When it comes to driver comfort and convenience Hyundai is always right out there at the forefront.

The Hyundai “F Series” engines deliver powerful performance, combining exceptional economy, reliability and long term durability. The D4GA 3.9L Turbo Diesel engine for HD65 produces 579Nm of torque and 110Kw of Power, the best torque across the light truck range.

The HD series offers extraordinary active safety and security options including 4-channel A.B.S integrated Electronic Brakeforce Distribution (EBD) system. When the system senses the brake locking in adverse or slippery road conditions, it easily adjusts and controls the braking pressures to all wheels by hydraulic control, while increasing brake pressure in emergency automatically.

General Category Truck
Product Label UDAYFAA3-2335/2623 (D4AF)
Model Name HD-65
Seats 2

Performance Hyundai HD 65

Engine Engine Label 3.6L Diesel Engine
Transmission Transmission Type 5 Speed Manual transmission

Specifications Hyundai HD 65

Specifications Tilt Cab With Torsion Bars Yes
Laminated Windscreen Yes
Wipers 3 speed wipers with intermittent
Dual Headlamps Exhaust Brake Yes
Instrumentation Full instrumentation including tachometer
High Altitude Compensator Yes
Tray Body Wide cab steel reinforced wooden drop side tray body
Tyres 7.00 x 16 - 10PR
Brakes Dual circuit brakes with vacuum servo assistance
Load Sensing Proportioning Valve Yes
Steering Column Tilt and telescopic adjustable steering column
Door Wide angle door opening
Console Centre console with coin slot and cupholders
Large Glove Box Yes
Passenger Side Sunvisor Yes
Assist Grip Door Pockets Yes
Driver’s Footrest Yes
Front and Rear Towhook Yes

Read Hyundai HD 65, 72 Electrical Troubleshooting Manual on PDF Below

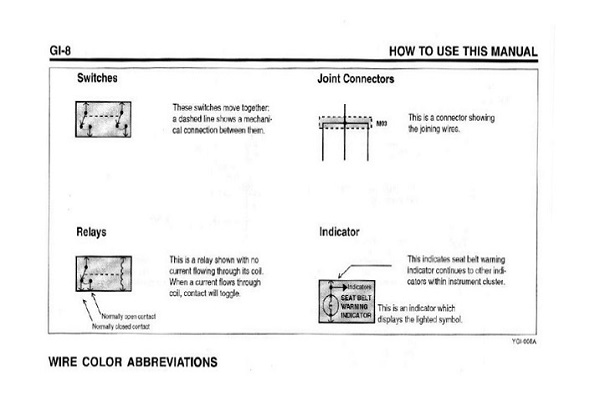

Hyundai HD 65,72 Electrical Troubleshooting Manual
