Product Specific

Product Specification Chart

  • Rated 120V, 60 Hz, 15A, 1450W (max.). Maximum amp draw when heaters running ~ 11A.
  • Water connection 3/8” NPT female.
  • Inlet water pressure range 5 - 120 psi (0.3 – 8.27 bars).
  • Circulation pump motor rated 120V, 60 Hz, 160W, insulation class A. Motors are thermally protected and use a 10µF capacitor.
  • Drain pump rated 120V, 60 Hz, 35W, 0.85A.

Model Number Listing and Explanation
Model numbers were changed with the dishwashers introduced during the 4th quarter of 2002.

  • Current model # listing – see on PDF below
  • Older model # listing – see on PDF below

Model Number Location
Located on right edge of inner door. See below.

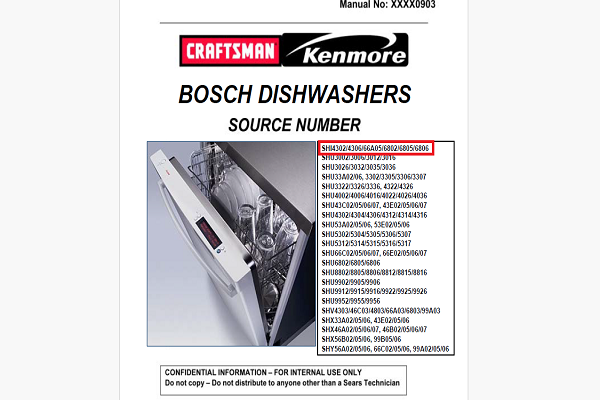

Readmore and Download Bosch Dishwasher SHI 6802 User Manual
