Canon iPF710 Service Manual

About Canon iPF710 Service Manual

The following rules apply throughout this Canon iPF710 Service Manual:

  1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with reference to the timing of operation. In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol, the arrow indicates the direction of the electric signal. The expression "turn on the power" means flipping on the power switch, closing the front door, and closing the delivery unit door, which results in supplying the machine with power.
  2. In the digital circuits, '1'is used to indicate that the voltage level of a given signal is "High", while '0' is used to indicate "Low".(The voltage value, however, differs from circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD signal goes on when '0'. In practically all cases, the internal mechanisms of a microprocessor cannot be checked in the field. Therefore, the operations of the microprocessors used in the machines are not discussed: they are explained in terms of from sensors to the input of the DC controller PCB and from the output of the DC controller PCB to the loads.

The descriptions in this Canon iPF710 Service Manual are subject to change without notice for product improvement or other purposes, and major changes will be communicated in the form of Service Information bulletins. All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant Service Information bulletins and be able to identify and isolate faults in the machine."

Canon iPF710 Product Overview

This printer is a large-format printer that prints in a maximum width of 36 inches with high-speed photographic picture quality. Canon iPF710 is a desktop product that delivers its output on roll media or cut sheets.

Canon iPF710 Product Overview

Ket:

[1] Top Cover [9] USB Port
[2] Upper Left Cover [10] Power Supply Connector
[3] Stand (option) [11] Roll Holder Set
[4] Output Stacker (included with stand) [12] Printhead
[5] Operation Panel [13] Ink Tank
[6] Ink Tank Cover [14] Power Cord
[7] Expansion Board Slot [15] Cleaner Brush
[8] Ethernet Connector

Canon iPF710 Features

  • Rear loading of roll media, making for compact, lightweight device geometry.
  • Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.
  • High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof five-color pigment inks of Y, M, C, BK and MBK, deliver high-quality photographic picture quality.
  • High-speed printing under bidirectional print control.
  • Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.
  • Ready for roll media and cut media.
  • Roll media pass in widths between 254 and 914.4 mm and in lengths up to 18 m.
  • The cutter unit that mounts on the carriage allows paper to be cut automatically.
  • Cut media are fed and ejected and ink tanks replaced all in an easy-to-access front panel operation.
  • USB2.0 high-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.

Canon iPF710 Printhead

The printhead that mounts on the carriage is an integrated six-color disposable printhead. It has 5,120 nozzles for MBK and 2,560 nozzles for each additional color arranged in a zigzag pattern. If print quality remains unimproved even after a specified cleaning operation, replace the printhead. Replacement about one year after the date of initial unpacking is also recommended.

Canon iPF710 Printhead

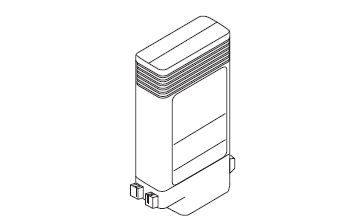

Canon iPF710 Ink Tank

Ink tanks are disposable.
An ink tank should be replaced when an ink tank replacement prompt message appears or when six months expire after the date of initial unpacking, whichever occurs earlier.
To install ink tanks, open the right cover of the printer. Ink tanks are furnished with a notch for preventing incorrect installation, which will allow the tanks to be installed at the position marked in the right color and nowhere else.
Ink tanks are available in the four dye ink colors of black, cyan, magenta and yellow and the pigment ink color of mat black.

Canon iPF710 Ink Tank
