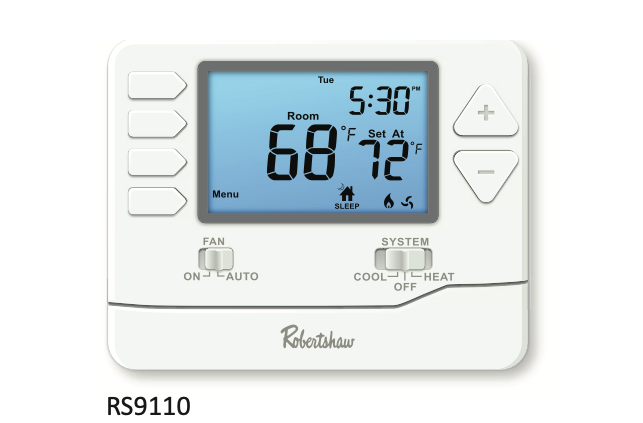

Robertshaw RS9110 Programmable Thermostat Manual
Description
Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a
simple, modern design with the RS9110 programmable wall thermostat.
Easy installation.
- Large terminal blocks
- Universal sub-base
Easy setup.
- Quick-access menu button
- Contractor/technician setup menu
Easy-to-understand programming menus
- Intuitive wake, leave, return, sleep programming icons
- Factory pre-set energy efficiency program
Simple, yet powerful control.
- Large, easy-to-read 4.6 square-inch blue backlit display
- Easy-access front-load battery compartment
- Adjustable temperature differential (swing) for energy optimization and maximum system life
- Adjustable room temperature calibration
- Adjustable setpoint limits
- Five-minute selectable on/off compressor delay protection for short-cycling prevention
- Separate O and B terminals
- Filter change reminder
Designed and built for reliability.
- ISO9001-certified
Features and Benefits
- Quick, easy installation
- Modern, user-friendly design and operation
- 7-day, 5-1-1 or non-programmable
- Large, easy-to-read 4.6-square-inch blue backlit display
- Filter change reminder
- Adjustable temperature differential (swing)
Specifications
- Dimensions (W x H x D) 4.7 x 3.8 x 1 in. (119.6 x 97.6 x 26 mm)
- Mounting Wall or junction box
- System compatibility Single-stage heating and cooling
- System fuel source Gas, electric or oil
- Heat pump compatibility Systems with auxiliary or emergency heat
- Millivolt application-compatible? Yes
- Temperature range 41°F to 95°F (5°C to 35°C)
- Control temperature range 44°F to 90°F (7°C to 32°C)
- Display accuracy Power sources Terminals ±1°C (at 20°C) / ±1°F (at 68°F)
- Power Source 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire required) or 2 AAA 1.5V alkaline batteries (included)
- Terminal Rh, Rc, C, Y, W, G, O, B
