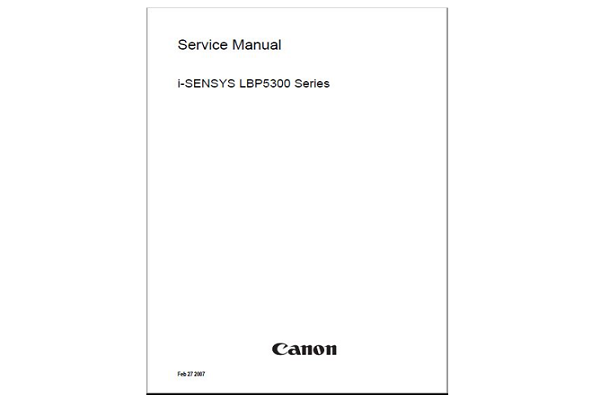

Canon i-SENSYS LBP5300 Series Service Manual

About Canon i-SENSYS LBP5300/5360 Series Service Manual

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair of products. This manual covers all localities where the products are sold. For this reason, there may be information in this manual that does not apply to your locality. This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products. When changes occur in applicable products or in the contents of this manual, Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of Canon i-SENSYS LBP5300 Series Service Manual.

Canon i-SENSYS LBP5300 Table Of Content

Contents
1.1 Features ...................................................................................................................1-1
1.1.1 Feature.................................................................................................................. 1-1
1.2 System construction ..................................................................................................1-1
1.2.1 System Construction ...............................................................................................1-1
1.2.2 System Cnstruction ................................................................................................ 1-1
1.3 Product Specifications.................................................................................................1-2
1.3.1 Product Specifications ............................................................................................ 1-2
1.3.2 Product Specifications .............................................................................................1-3
1.4 Name of Parts.............................................................................................................1-4
1.4.1 External View .......................................................................................................... 1-4
1.4.2 External View .......................................................................................................... 1-4
1.4.3 Cross Section View................................................................................................... 1-5
1.5 Using the Machine .......................................................................................................1-6
1.5.1 Control Panel ........................................................................................................... 1-6
1.5.2 Control Panel ........................................................................................................... 1-7
1.5.3 Job Menu.................................................................................................................. 1-8
1.5.4 Setup Menu (1) ......................................................................................................... 1-8
1.5.5 Setup Menu (2) ......................................................................................................... 1-10
1.5.6 Setup Menu (3) ........................................................................................................ 1-11
1.5.7 Setup Menu (4) ......................................................................................................... 1-13
1.5.8 Setup Menu (5) .......................................................................................................... 1-14
1.5.9 Utility Menu................................................................................................................ 1-15
1.5.10 Reset Menu ............................................................................................................. 1-15
1.5.11 Pickup Selection Menu .............................................................................................. 1-15
1.6 Safety ............................................................................................................................1-16
1.6.1 Safety of the Laser Light................................................................................................1-16
1.6.2 Regulations Under the Center for Devices and Radiological Health (CDRH).........................1-16
1.6.3 Safety of Toner .............................................................................................................1-16
1.6.4 Handling the Laser Unit..................................................................................................1-16

Canon i-SENSYS LBP5300 Series Feature

0013-7282 / i-SENSYS LBP5360 / i-SENSYS LBP5300

  1. High-speed printing and high image quality This printer realizes high-speed printing for both full-color and monochrome print. Regardless of this high-speed, the toner with fine particle enables to produce vivid image with the resolution of 600 dpi. Full color/Monochrome: 22 pages/min.
  2. Electrostatic Transportation Belt (ETB) This printer adopts the "Electrostatic Transportation Belt" (hereafter ETB) method for image transfer and paper feed process. In order to realize the high-speed color printing, toner images of all four colors on the photosensitive drum are transferred onto paper directly.
  3. Four consecutive drum method (Inline method) This printer adopts the four consecutive drum method. The toner cartridges are aligned vertically and all four colors are transferred on paper in one sequential operation. This realizes highspeed color printing, as this method needs less time to transfer compared to the rotary method where each color is transferred separately.
  4. Color on-demand fixing method The machine uses an on-demand fixing method combined with a ceramic heater so far mostly used in a mono-color printer. The fact has led to a shorter warmup period and lower energy consumption.
  5. 500-sheet paper feeder This printer can be installed optional 500-sheet paper feeder in addition to the standard MPT (100 sheets available) and cassette (250 sheets available). This enables high-volume printing of maximum 850 sheets.
  6. Automatic duplex printing There are simplex and duplex models for this printer. Automatic duplex printing is available with the duplex model.

Read More and Download Canon i-SENSYS LBP5300 Series Service Manual pdf Below

 Canon i-SENSYS LBP5300 Series Service Manual
