Canon iPF9000 Series Service Manual

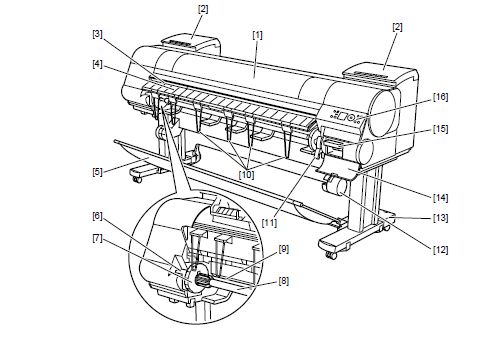

iPF9000 / iPF9000S / iPF9100 Product Overview

This printer is a large-format printer that prints in a maximum width of 60 inches with high-speed photographic picture quality. This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet.

iPF9000 Features

Media pass in widths up to 60 inches (1524 mm).
Large ink tanks save the need for their replacement.
Uninterrupted printing from subtanks.
Two kinds of BK inks loaded concurrently to eliminate the need for their replacement.
Hard disk drive mounted for greater ease of job management and for driving on night time.
Media take-up unit supported as a standard feature.
Basket (option) can be mounted concurrently with a media take-up unit.
Durability will be added by maintenance kit.
Large LCD panel displays more information and makes operations easier.
High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof 12-color pigment inks of MBK, BK, PC, C, PM, M, Y, R, G, B, GY, and PGY, deliver high-quality photographic picture quality.
USB2.0 high-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.
Barcodes printed on roll media make remaining roll media management possible.
Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.
High-speed printing with a 1-inch head for each color (1,280 nozzles), under bidirectional print control.
Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.

iPF9100 Features

Media pass in widths up to 60 inches (1524 mm).
Large ink tanks save the need for their replacement.
Uninterrupted printing from subtanks.
Two kinds of BK inks loaded concurrently to eliminate the need for their replacement.
Hard disk drive mounted for greater ease of job management and for driving on night time.
Media take-up unit supported as a standard feature.
Basket (option) can be mounted concurrently with a media take-up unit.
Durability will be added by maintenance kit.
Large LCD panel displays more information and makes operations easier.
High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof 12-color pigment inks of MBK, BK, PC, C, PM, M, Y, R, G, B, GY, and PGY, deliver high-quality photographic picture quality.
USB2.0 high-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.
Barcodes printed on roll media make remaining roll media management possible.
Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.
High-speed printing with a 1-inch head for each color (1,280 nozzles), under bidirectional print control.
Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.

Functional enhancements new to this model include:

Higher image quality Use of abrasion-resistant inks (MBK, BK, PGY, GY) offers enhanced image durability. The color calibration feature adds to the faithfulness of color reproduction.

iPF9000S Features

Media pass in widths up to 60 inches (1524 mm).
Large ink tanks save the need for their replacement.
Uninterrupted printing from subtanks.
Two kinds of BK inks loaded concurrently to eliminate the need for their replacement.
Hard disk drive mounted for greater ease of job management and for driving on night time.
Media take-up unit supported as a standard feature.
Basket (option) can be mounted concurrently with a media take-up unit.
Durability will be added by maintenance kit.
Large LCD panel displays more information and makes operations easier.
High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof 8-color pigment inks of MBK, BK, PC, C, PM, M, Y and GY, deliver high-quality photographic picture quality.
USB2.0 high-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.
Barcodes printed on roll media make remaining roll media management possible.
Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.
High-speed printing with a 1-inch head for each color (1,280 nozzles), under bidirectional print control.
Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.

Functional enhancements new to this model include:

Higher image quality The color calibration feature adds to the faithfulness of color reproduction.
High printing productivity The 8-color pigment inks system offers enhanced printing productivity.

iPF9000 / iPF9000S / iPF9100 Printhead

The printhead that mounts on the carriage is an integrated six-color disposable printhead. It has 2,560 nozzles for each color, comprising two trays of 1,280 nozzles each arranged in a zigzag pattern. If print quality remains unimproved even after a specified cleaning operation, replace the printhead. Replacement about one year after the date of initial unpacking is also recommended.

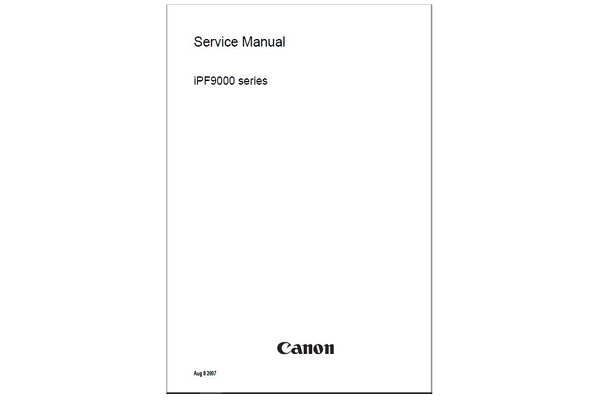

Download Canon iPF9000 Series Service Manual

Title	: Canon iPF9000 Series Service Manual
Format	: PDF
Pages	: 445 Pages
Language	: English
File Size	: 16.6 MB
