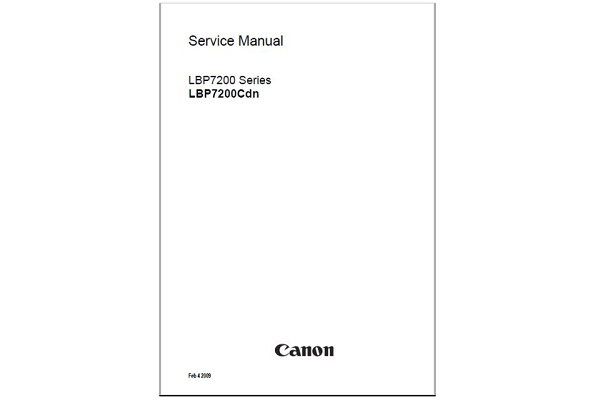

Canon LBP7200cdn Service Manual

About Canon LBP7200cdn Service Manual

The descriptions in Canon LBP7200cdn Service Manual are subject to change without notice for product improvement or other purposes, and major changes will be communicated in the form of Service Information bulletins. All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant Service Information bulletins and be able to identify and isolate faults in the machine."

Canon LBP7200 Series Table of Contents

1.1 Features ...................................................................................................................................1-1
1.1.1 Feature................................................................................................................................... 1-1
1.2 Product Specifications.................................................................................................................1-1
1.2.1 Product Specifications .............................................................................................................1-1
1.3 Detailed Specifications ................................................................................................................1-2
1.3.1 Print Speed .............................................................................................................................1-2
1.4 Name of Parts.............................................................................................................................1-3
1.4.1 External View ...........................................................................................................................1-3
1.4.2 Cross Sectional View................................................................................................................. 1-4
1.5 Using the Machine .......................................................................................................................1-5
1.5.1 Control Panel ............................................................................................................................1-5
1.6 Safety .........................................................................................................................................1-6
1.6.1 Safety of the Laser Light..............................................................................................................1-6
1.6.2 Safety of Toner ..........................................................................................................................1-6
1.6.3 Handling the Laser Unit................................................................................................................1-6
1.6.4 Points to note at disassembly/installation procedure ......................................................................1-7

Canon LBP7200cdn Feature

  1. Small and low-cost printer The printer uses a flat in-line cartridge method for the first time in the small printer. This lowers the height and reduces the printer size. The printer uses the transfer pad and the separation roller to reduce the parts expenses.
  2. Intermediate transfer method The intermediate transfer method transfers toner images to the Intermediate Transfer Belt (ITB) and transfers the images in four colors onto the print media at once. It realizes a stabilized color-print on various media without being affected by the primary transfer operation.
  3. Improved usability The printer improves usability by using the pullout cartridge and the front side accessibility to the media. This small-sized printer is user-friendly on the space of the desktop.

Canon LBP7200cdn Product Specifications

  • Body installation method Desktop page printer
  • Photosensitive medium OPC drum
  • Charging method Roller charging
  • Exposure method Laser scanning
  • Development method Contact development
  • Transfer method Intermediate Transfer Belt (ITB)
  • Separation method Curvature
  • Pickup method Cassette: simple retard method
  • Manual feed tray : pad separation method
  • Drum cleaning method rubber blade
  • Transfer cleaning method Cleaning brush + roller method (drum electrostatic collection)
  • Fixing method On-demand fixing
  • Delivery method Face-down
  • Contrast adjustment function Auto
  • Toner level detection function Available
  • Toner type Non-magnetic single-component dry toner
  • Warm-up time 19 seconds or less
    • May vary depending on the usage conditions, such as the availability of the optional accessories and installation environment.
    • Approximately 220 seconds when the printer is turned on after a toner cartridge is replaced.
  • Image margin (Leading edge) 5.0+1.5/-1.5mm
  • Image margin (Trailing edge) 5.0+1.5/-1.5mm
  • Image margin (Left/right) 5.0+1.0/-1.0mm
  • Number of gradations 16 gradations
  • Printing resolution 600dpi x 600dpi
  • First print time
    • Black and white printing: 15 seconds or less
    • Color printing: 15 seconds or less
    • May vary depending on the output environment.
  • Print speed (A4) Black and white printing: 20 ppm Color printing: 20 ppm
    • The print speed may drop depending on the settings for the paper size, paper type, number of pages printed, and fixing mode setting.
    • If the printer is used continuously for an extended period of time, the internal temperature of the printer may increase, activating a safety mechanism and pausing printing temporarily.
  • Cassette paper size
    • Standard sizes: A4, B5, A5, Legal, Letter, Executive, Statement, Foolscap, 16K, Envelope DL, Envelope COM10, Envelope C5, and Envelope B5
    • Custom paper sizes: 100.0 to 215.9 mm wide and 148.0 to 355.6 mm long
  • Multifeeder paper size
    • Standard sizes: A4, B5, A5, Legal, Letter, Executive, Statement, Foolscap, 16K, Envelope DL, Envelope COM10, Envelope C5, Envelope B5, Envelope Monarch, and Index Card
    • Custom paper sizes: 76.2 to 215.9 mm wide and 127.0 to 355.6 mm long
  • Cassette paper type Plain paper (60 to 90g/m2),Heavy paper (86 to 263g/m2),Label,Coated paper(120 to 220g/m2),Envelope
  • Multifeeder tray paper type Plain paper (60 to 90g/m2),Heavy paper (86 to 263g/ m2),Transparency,Label,Coated paper(120 to 220g/m2),Envelope
  • Cassette capacity Approx. 250 sheets (80 g/m2)
  • Multifeeder tray capacity Approx. 50 sheets (80 g/m2)
  • Delivery tray stack Approx. 125 sheets (80 g/m2)
  • Memory Standard: 16MB, option: none
  • Hard disk Standard: none, option: none
  • Interface USB:
    • Hi-Speed USB/USB
    • Network: Shared 10BASE-T/100BASE-TX (RJ-45)
    • Full duplex/Half duplex
  • Auto gradation correction available(A4, B5, Legal, Letter, Executive, and Foolscap)
  • Operating environment (Temperature range) 10 to 30 deg
  • Operating (Humidity range) environment
    • Operating environment Temperature range: 10 to 30 deg C (50 to 86 deg F)
    • Humidity range: 20 to 80 % RH (no condensation)
  • Noise Lwad (declared A-weighted sound power level (1 B = 10 dB))
    • During standby: Background noise level
    • During operation: 7 B or less
    • Sound pressure level (bystander position)
    • During standby: Background noise level
    • During operation: 56 dB (A) or less (Declared noise emission in accordance with ISO 9296) Power supply rating 120 to 127 V (±10%), 50/60 Hz (±2 Hz) 220 to 240 V (±10%), 50/60 Hz (±2 Hz)
  • Power consumption (Maximum) 1,070 W or less
    • Power consumption Average during operation
    • Approx. 405 W (120 to 127V)/ Approx. 395 W (220 to 240V) Average during standby
    • Approx. 18.5 W (120 to 127V)/ Approx. 20.5 W (220 to 240V) Average during sleep mode
    • Approx. 7 W (120 to 127V)/ Approx. 7.5 W (220 to 240V)
  • Dimensions 409 (W) x 490 (W) x 331(H) mm
  • Weight Printer unit (excluding toner cartridges):Approx. 22.0 kg
    Option Csette:4.0Kg

Canon LBP7200cdn Safety of the Laser Light

  1. Laser beam radiation may pose a danger to the human body. A laser scanner mounted on the machine is sealed with the protection housing and external cover to prevent the laser beam from leaking to the outside. The laser beam never leaks out of the scanner as far as users operate the machine normally
  2. The following warnings are given to comply with Safety Principles (EN60950). Laserstrahlen können für den menschlichen Körper gefährlich sein. Aus diesem Grund ist das optische Lasersystem mit einem Schutzgehäuse und einer Außenabdeckung dicht verschlossen und hat eine Struktur, die keine Laserstrahlen nach außen dringen lässt. Unter der Voraussetzung, dass der Benutzer dieses Gerät normal bedient, ist ein Austritt von Laserstrahlen daher ausgeschlossen.
