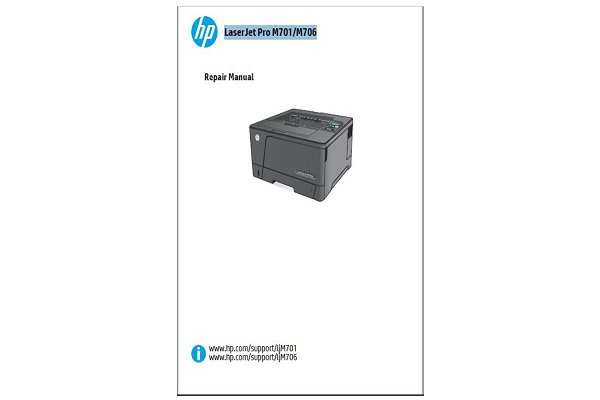

HP LaserJet Pro M701/M706 Repair Manual

HP LaserJet Pro M701/M706 Removal and replacement strategy

Introduction HP LaserJet Pro M701/M706 Repair Manual

HP LaserJet Pro M701/M706 Repair Manual - This chapter describes the removal and replacement of field-replaceable units (FRUs) only. Replacing FRUs is generally the reverse of removal. Notes are included to provide directions for difficult or critical replacement procedures.

HP does not support repairing individual subassemblies or troubleshooting to the component level.

Never operate or service the product with the protective cover removed from the laser/scanner assembly.

The reflected beam, although invisible, can damage your eyes.

The sheet-metal parts can have sharp edges. Be careful when handling sheet-metal parts.

Required tools

  • #2 Phillips screwdriver with a magnetic tip and a 152 mm (6 inch) shaft length
  • Small flatblade screwdriver
  • T-10 Torx screw driver
  • Needle-nose pliers
  • ESD strap (if one is available)
  • Penlight

Types of screws

WARNING! Make sure that components are replaced with the correct screw type. Using an incorrect screw (for example, substituting a long screw for the correct shorter screw) can cause damage to the product or interfere with product operation. Do not intermix screws that are removed from one component with the screws that are removed from another component.

For a complete list of screw types and part numbers, see the Parts and diagrams on page 109 chapter. Service approach

Printer repair normally begins by using the product internal diagnostics and the following two-step process:

  1. Isolate the problem to the major system (for example, the network, server, or the product).
  2. Troubleshoot the problem by using the procedures in the HP LaserJet Pro M701/M706 Troubleshooting


After you locate a faulty part, the product can usually be repaired at the assembly level by replacing FRUs. Some mechanical assemblies might need to be repaired at the subassembly level. HP does not support replacement of components on the printed circuit assembles. Before performing service

  1. Turn the product off, wait 5 seconds, and then remove the power cord, network cable, and USB cable before attempting to service the product. CAUTION: If this warning is not followed, severe injury and damage to the device can result. The power must be on for certain functional checks during troubleshooting. However, the power supply must be disconnected during parts removal.
  2. Remove all media.
  3. Place the product on an ESD mat (if available).
  4. Remove the print cartridge.
