Congratulations on your choice of purchasing the SP3 Vacuum Pump! The new SP3 Vacuum Pump lets you to charge and discharge most of the shock absorbers, steering dampers and front forks on the market. This machine is software controlled and you control the process on the screen at the front of the machine. The USB interface at the back of the machine also gives the opportunity to print all details.

Ohlins Vacuum Pump TABLE of CONTENTS

1 SP3 Vacuum Pump................................................... 3
1.1 Adapters................................................................. 3
1.2 Power supply........................................................... 3
1.3 Setting up............................................................... 3
1.4 Fill the SP3 Vacuum Pump with oil............................ 4
1.5 Change oil - TANK 1 or TANK 2................................. 5
1.6 Service and maintenance.......................................... 5
1.7 Control the SP3 Vacuum Pump from the computer...... 6
1.8 Change operation time.............................................. 6
2 Bleed and fill oil........................................................7
2.1 Shock absorber with separating piston........................ 7
2.2 Shock absorber with bladder...................................... 8
2.3 Steering damper........................................................9

SP3 Vacuum Pump

Adapters

The SP3 Vacuum Pump is delivered with several adapters so that it can be used on most shock absorbers and steering dampers on the market. Make sure to use the appropriate adapter for your product.

AdWptea model

ThaeWd

Kayaba MX

M28

Kayaba MX

M6

Kayaba R/T

M24

Kayaba R/t

M22

SD WP

M19

Showa MX

M27

Showa R/T

M18

Showa R/T reverse

M18

Showa Suzuki RMZ 450 2008

M34

WP Shock absorber

M9.4

Öhlins hydraulic preload adj SD 4XX

M4

Öhlins Rotary Steering damper SD 2.0, SD 2.1

M8

Öhlins Shock absorber

M5

Öhlins Steering damper R/T

M11

Power supply

The international code for the electric connection is IEC 320. Make sure to use the appropriate SP3 Vacuum Pump for the voltage
used in your country:

AvWnlWble veasnors



01840-02

220 V

01840-03

110 V

Setting up

Power

Use the provided power cord to connect the machine to the power source. Attach the air inlet hose with minimum 3 bar pressure.

Select a language

Set the switch at the back of the machine to ON. When you see the first screen view, press START and ENTER at the same time. Press STOP to scroll through the available languages. Press START and ENTER to select a language and return back into the main menu.

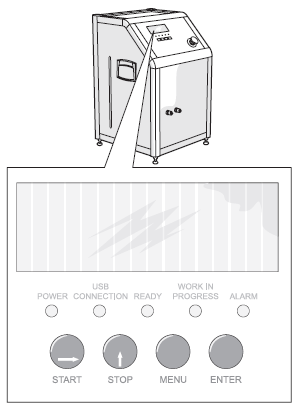

Ohlins Vacuum Pump Display

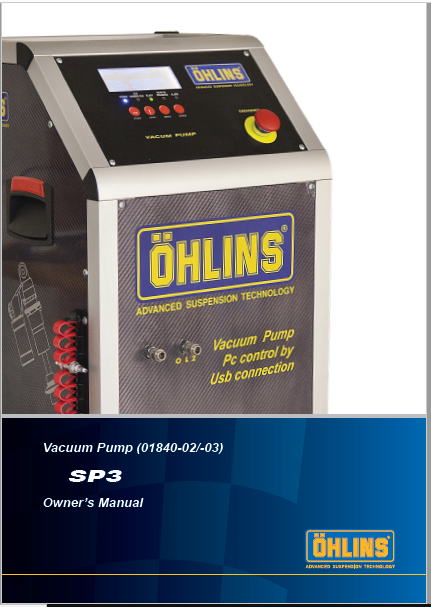

Readmore Ohlins Vacuum Pump (01840-02-03) SP3 Manual PDF
