FOREWORD Yamaha TDM900P User Manual

This Parts Catalogue is related to the parts for the model(s) in the below frame. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

1. Modifications or additions which have been made after issue of the Parts Catalogue will be announced in the Yamaha Parts News.
It is advisable that you make necessary corrections to the Parts Catalogue according to the Yamaha Parts News.

2. Abbreviations
The Following abbreviations are used in this Parts Catalogue. “UR” Use specified parts number.
“UN” Use as many as needed.
“AP” Alternate Parts
“LM” Local Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.)

3. Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the part name as shown below.
EXAMPLE CARBURETOR ASSY
.JET, PILOT
.NOZZLE, MAIN

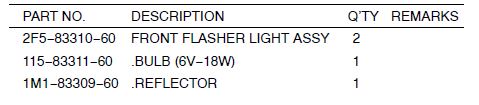

4. Number of component for assembly
The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.
EXAMPLE
