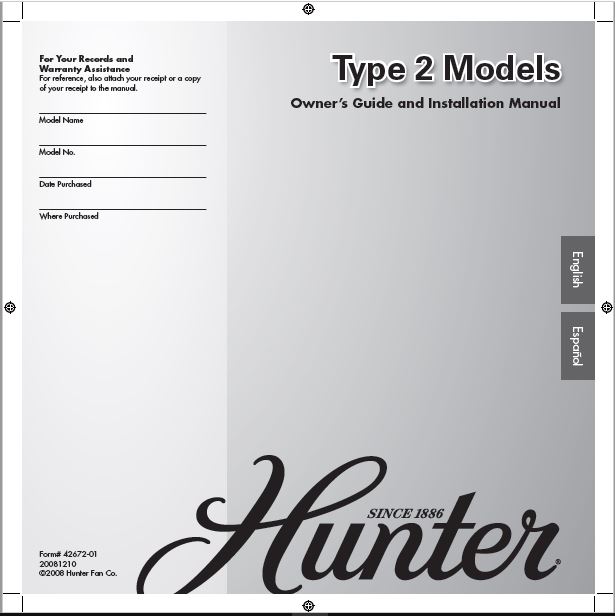

Hunter 20175 42 Southern Breeze User Manual

About Hunter 20175 42 Southern Breeze User Manual

Your new Hunter® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. This installation and operation manual gives you complete instructions for installing and operating your fan. We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world. Before installing your fan, for your records and warranty assistance, record information from the carton and Hunter nameplate label (located on the top of the fan motor housing).

Hunter 20175 42 Southern Breeze Cautions and Warnings

  • READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS.
  • Use only Hunter replacement parts.
  • To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
  • To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
  • All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.
  • To reduce the risk of personal injury, do not bend the blade attachment system when installing, balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.
  • To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed controls.

Hunter 20175 42 Southern Breeze Table Of Contents

  1. Getting Ready.............................................................. 4
  2. Installing the Ceiling Plate............................................. 5
  3. Assembling and Hanging the Fan.................................. 6
  4. Wiring the Fan............................................................. 7
  5. Installing the Canopy and Canopy Trim Ring................... 8
  6. Assembling the Blades................................................. 9
  7. Operating and Cleaning Your Ceiling Fan....................... 11
  8. Troubleshooting............................................................12

Hunter 20175 42 Installer’s Choice and Optional Accessories

Understanding Mounting and Installer’s Choice®

Hunter’s patented 3-position mounting system provides you maximum installation flexibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profile, Standard, or Angled mounting. The steps in this manual include instructions for all three Installer’s Choice mounting methods.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a wall-mounted or remote speed control. To install and use the accessories, follow the instructions included with each product. For quiet and optimum performance of your Hunter fan, use only Hunter speed controls.

Readmore and Download Hunter 20175 42 Southern Breeze User Manual PDF below
