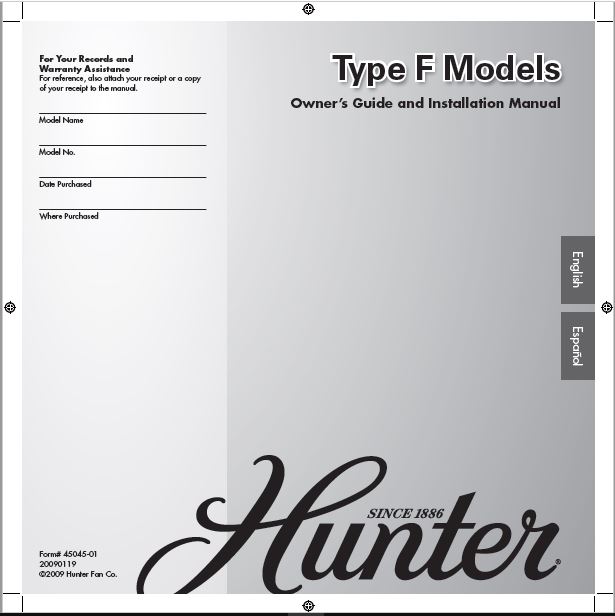

Hunter 21215 61 Fellini User Manual

About Hunter 21215 61 Fellini User Manual

Your new Hunter® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. This installation and operation manual gives you complete instructions for installing and operating your fan.

We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance, record information from the carton and Hunter nameplate label (located on the top of the fan motor housing).

Hunter 21215 61 Fellini Table of Contents

  1. Getting Ready................................................................................................4
  2. Installing the Ceiling Plate...............................................................................5
  3. Assembling and Hanging the Fan.....................................................................6
  4. Wiring the Fan................................................................................................8
  5. Installing the Canopy and Canopy Trim Ring......................................................9
  6. Assembling the Blades..................................................................................10
  7. Installing the Switch Housing..........................................................................11
  8. Setting the Remote Transmitter and Receiver...................................................12
  9. Completing Your Installation...........................................................................13
  10. Operating the Remote Control and Mounting the Holder.....................................14
  11. Operating and Cleaning Your Fan....................................................................15
  12. Troubleshooting.............................................................................................16

Hunter 21215 61 Fellini Installation

To install a ceiling fan, be sure you can do the following:

  • Locate the ceiling joist or other suitable support in ceiling.
  • Drill holes for and install wood screws.
  • Identify and connect electrical wires.
  • Lift 40 pounds.

If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan:

  • Electric drill with 9/64” bit
  • Standard screwdriver
  • Phillips-head screwdriver
  • Wrench or pliers

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Check for any shipping damage to the motor or fan blades. If one of the fan blades was damaged in shipment, return all the blades for replacement. If any parts are missing or damaged, contact your Hunter dealer or call Hunter Parts Department at 888-830-1326.

Preparing the Fan Site

Before you begin installing the fan, follow all the instructions in the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum efficiency, and energy savings.

Hunter 21215 61 Fellini Installing the Hanger Bracket

  1. Drill two pilot holes into the wood support structure through the outermost holes in the outlet box. The pilot holes should be 9/64” in diameter. Note: Your fan comes with four pre-installed neoprene noise isolators.
  2. Thread the lead wires from the outlet box down through the hole in the middle of the hanger bracket.
  3. Align the slotted holes in the hanger bracket with the pilot holes you drilled in the wood support structure. For proper alignment use slotted holes directly across from each other. If you are installing the fan on an ANGLED ceiling, be sure to orient the hanger bracket as shown in Illustration 2-3 (left or right view). Note: The isolators should be flush against the ceiling.
  4. Place a flat washer on each of the two 3” screws and pass the screws through the slotted holes in the hanger bracket into the pilot holes you drilled. Tighten the screws into the 9/64” pilot holes; do not use lubricants on the screws. Do not over tighten.
