Sensi Smart Thermostat Pro Installation Manual

Sensi Smart Thermostat Pro Installation Manual

Easy to install and connect

Sensi is designed to install like a standard thermostat. It gives you the flexibility to connect to Wi-Fi at installation or let your customer connect it later using the Sensi app.

MOBILE DEVICE COMPATIBILITY

OPERATING SYSTEM

COMPATIBILITY

iOS

Yes

Android

Yes

Amazon Fire

Yes

SMART HOME PLATFORM COMPATIBILITY

OPERATING SYSTEM

COMPATIBILITY

Amazon Alexa

Yes

Google Assistant

Yes

Apple HomeKit

Yes, but requires a common wire (c-wire)

HVAC SYSTEM COMPATIBILITY

SYSTEM TYPE

COMPATIBILITY

MODIFICATIONS

Conventional heating and cooling

  • Gas Furnace
  • Air conditioner
  • Electric furnace
  • Boiler

Yes

None

Heat only

  • Gas furnace
  • Electric furnace
  • Boiler

Yes

Requires a common wire (c-wire)

Cool only

Air conditioner

Yes

Requires a common wire (c-wire)

Heat pump

Yes

Requires a common wire (c-wire)

Communicating proprietary systems

No

Needs standard HVAC wiring

Line voltage

No

Requires low voltage (20-30VAC)

Millivolt systems

No

Requires 20-30VAC

Sensi Smart Thermostat Pro What’s in the box?

  • Sensi Thermostat
  • Screws and Anchors
  • Wire Labels
  • 2 AA Batteries
  • Sensi Security Code

(found on the back of the Welcome Guide) Items needed for Wi-Fi connection:

  • The homeowners compatible iOS or Android device with the Sensi app installed and registered
  • Your customer’s Wi-Fi network name (SSID) and password

Sensi Smart Thermostat Pro Installation

Install Sensi thermostat, referring to these terminal definitions, cross references and wiring diagrams as needed:

OLD THERMOSTAT

SENSI THERMOSTAT

CONVENTIONAL HEAT PUMP SYSTEM

RH

RH

Power for heating, 24V

RC, R

RC

Power for cooling, 24V

C, X, B**

C

Common wire, 24V

Y, Y1

Y

1st stage cool              1stage heatst outdoor

Y2

Y2/*

2nd stage cool    2heat and cool nd outdoor stage

or humidifier                          or humidifier

W, W1, W/E,  Aux/E, E

W/E

1st indoor stage heat 1emergency heatst stage auxiliary/

W2†††

W2/*

2nd indoor stage                2emergency heat nd stage auxiliary/ heat or dehumidifier or dehumidifier

G

G

Indoor blower (fan)

O,B,†† O/B

O/B

Changeover (reversing valve) connection  for heat pump or zone panel systems

Two transformer systems (separate RC and RH wires), clip internal jumper located on back of Sensi above battery compartment.
†† Label “B” as “C” only if the old thermostat also had a wire in “O”. If there is no wire on “O”-label the wire “B”.
††† On Heat Pump system with separate W2 and E wires, label both wires W/E (2 wires in one terminal).

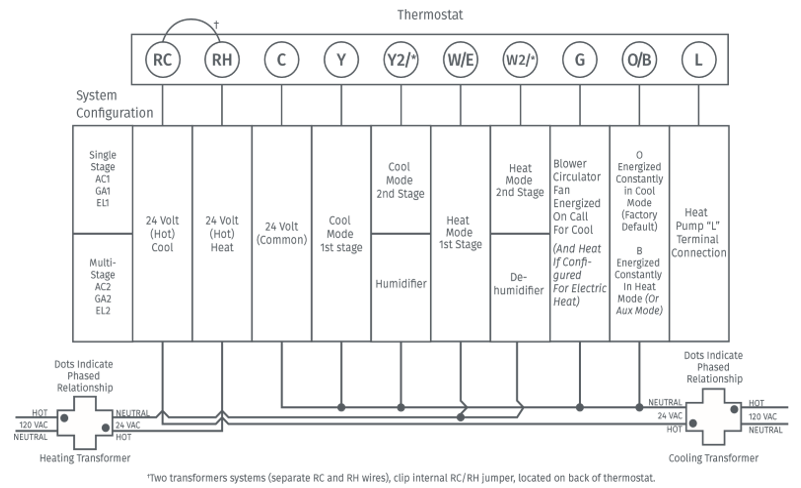

Sensi Pro Manual Wiring

SINGLE STAGE OR MULTISTAGE SYSTEM NO HEAT PUMP WITH TWO TRANSFORMERS

Sensi Pro Manual Wiring

Sensi Pro HEAT PUMP Systems

Sensi Pro HEAT PUMP System

After installation, configure the thermostat to the appropriate system type. Press “Menu” on the thermostat and refer to these menu options as needed:

CONFIGURATION MENU ITEMS REFERENCE

Display Code

Menu item

Default

Options



Wireless Setup Connects Thermostat to Wi-Fi network

Connect



Fahrenheit or Celsius

F

F C



Outdoor Equipment Configuration

Cooling or heat pumps

AC2

AC1 – Conventional Cooling 1

(Single Stage)

AC2– Conventional Cooling 2

(Two-Stage)

HP1 – Heat Pump 1 (Single Stage) HP2– Heat Pump 2 (Two-Stage) AC0– No Cooling



Indoor Equipment Configuration

For Gas or Electric Heat

EL2

EL1– Electric 1 (Single Stage) EL2– Electric 2 (Two-Stage) FAn

GA1 Gas 1 (Single Stage)

GA2 Gas 2 (Two-Stage)



Reversing Valve Position Selects “O” or “B” Setting For Heat Pumps Only

O

O B 2

Fn

Circulating Fan

OFF

Off/10% – 100% (5% increments)

H AA

Humidification

Add Accessory

OFF

Off/On

H SP

Humidification

Set Point

OFF

Off/5% – 50% (5% increments)

dH AA

Dehumidification

Add Accessory

Od

Od/Oc

Od – Optimal dehumidification

(Overcool to dehumidify) Oc – Optimal comfort (Wired dehumidification)

dH SP

Dehumidification

Set Point

OFF

Off/40% – 95% (5% increments)



Wireless Radio

Turns Wi-Fi Radio On/Off

ON

Off/On

Once the thermostat is installed and properly configured, test the equipment by following these steps:

  • Turn on power to the system.
  • Fan Operation
    • If your system does not have a “G” terminal connection, skip to “Heating System” below.
    • Press the “Fan” button on the thermostat and select the “On” position. The blower should begin to operate.
    • Press the “Mode” button to turn off the system. Then press the “Fan” button on the thermostat and select the “Auto” position. The blower should stop immediately.
  • Circulating Fan
    • Press the “Menu” button on the thermostat and press the “Next” button until you reach the “Fn” screen.
    • Adjust the % run time from 10%-100% in 5% increments by using the arrow up or down buttons (default is OFF), then press “Exit”.
    • The % run time is the percentage of time the fan shall run in a day. This calculation takes into account the amount of time the heating, cooling and continuous fan have run during the same day.
  • Heating System
    • Press the “Mode” button on the thermostat and select the “Heat” position.
    • Press the up arrow on the thermostat and adjust the setting to 1° above the current room temperature. The heating system should begin to operate and the thermostat will indicate “Heating” of “Heating Auxiliary” on the screen.
    • For heat pumps with auxiliary, press the up arrow on the thermostat and adjust the setting to 3° above the current room temperature. The auxiliary heat should begin to operate and the thermostat will indicate “Heating Auxiliary” on the screen.
    • Press the down arrow on the thermostat and adjust the setting to 1° below the current room temperature. The heating system should stop operating and “Heating” or “Heating Auxiliary” will disappear from the screen.
  • Auxiliary System (only for heat pumps with auxiliary)
    • Press the “Mode” button on the thermostat and select the “Aux” position. This bypasses the heat pump and runs auxiliary-only heat.
    • Press the up arrow on the thermostat and adjust the setting to 1° above the current room temperature. The auxiliary heating system should begin to operate and the thermostat will indicate “Heating Auxiliary” on the screen.
    • Press the down arrow on the thermostat and adjust the setting to 1° below the current room temperature. The auxiliary heating system should stop operating and “Heating Auxiliary” will disappear from the screen.
  • Cooling System
    • Press the “Mode” button on the thermostat and select the “Cool” position.
    • Press the down arrow and adjust the setting to 1° below the current room temperature. The blower should come on immediately on high speed, followed by cold air circulation. The thermostat will indicate “Cooling” on the screen. Note that there can be up to a 5 minute delay for this process. This is indicated by a flashing setpoint temperature.
    • Press the up arrow and adjust the setting to 1° above the current room temperature. The cooling system should stop operating and “Cooling” will disappear from the screen.
    • If you encounter any issues while testing the equipment, refer to the troubleshooting actions on page 17.
  • Humidification
    • Press the “Mode” button on the thermostat and select the “Heat” position.
    • Press the up arrow on the thermostat and adjust the setting to 1° above the current room temperature. The heating system should begin to operate and the thermostat will indicate “Heating” on the screen.
    • Press the “Menu” button on the thermostat and press the “Next” button until you reach the “H SP” screen.
    • Turn Humidification On by pressing either the Up or Down button until the humidity set point is higher than the current room humidity. Humidity can be adjusted from 5%-50% in 5% increments, then press “Exit”.
    • Check to ensure humidifier is running.
    • Press the down arrow on the thermostat and adjust the setting to 1° below the current room temperature. The heating and humidification systems should both stop operating.
  • Dehumidification
    • Press the “Mode” button on the thermostat and select the “Cool” position.
    • Press the down arrow and adjust the setting to 1° below the current room temperature. The blower should come on immediately on high speed, followed by cold air circulation. The thermostat will indicate “Cooling” on the screen. Note that there can be up to a 5 minute delay for this process. This is indicated by a flashing setpoint temperature.
    • Press the “Menu” button on the thermostat and press the “Next” button until you reach the “dH SP” screen.
    • Turn Dehumidification On by pressing either the Up or Down button until the humidity setpoint is lower than the current room humidity. Humidity can be adjusted from 40% to 95% in 5% increments, then press “Exit”.
    • Depending on installed equipment, check that the system fan speed has slowed, the dehumidifier is running, or the system cools up to 3° below temperature set point or until the humidity set point is reached.
    • Press the up arrow and adjust the setting to 1° above the current room temperature. The cooling system and dehumidifier (if applicable) should both stop operating.
