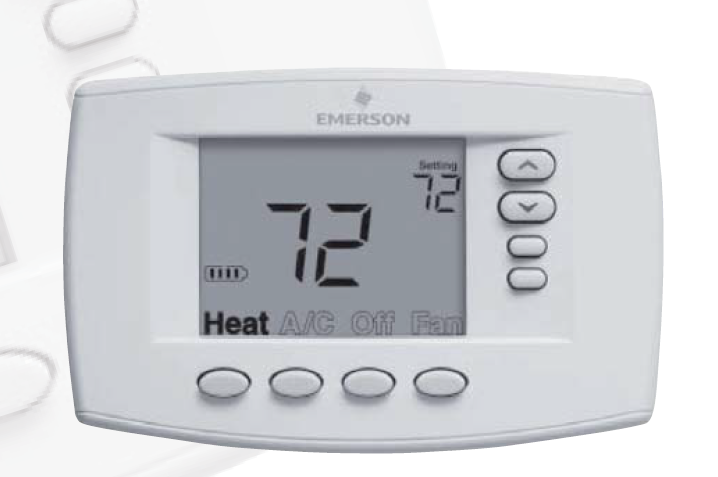

White Rodgers White Blue Easy Reader 1F95EZ-0671

Blue Easy Reader is designed to be the easiest thermostat you have ever used. This thermostat features large numbers and letters for easier viewing, and “one button to one function” operation for total simplicity. As with all Emerson Blue thermostats, no other brand offers better temperature accuracy or reliability. Blue Easy Reader Thermostat consists of two parts, the base or wall plate mounted on your interior wall and the display and control front that snaps onto the base piece. Depending on your installation, your Blue Easy Reader may be battery powered or system powered. Either way, it is recommended to keep fresh batteries installed. Batteries are accessible by removing the control front from the base. Whenever “Change ” battery indicator appears in the display, new premium brand AA alkaline batteries should be installed. If the house will be unoccupied for an extended period and battery indicator is displayed, install new batteries before leaving.

If you plan to use Blue Easy Reader as a non-programmable thermostat, please turn the page to get started. Keep in mind that Easy Reader can also be a programmable thermostat if you should change your mind later. Please call 800-284-2925 if you need assistance in changing to programmable. If you plan to use Easy Reader as a programmable thermostat, please skip to page 6.

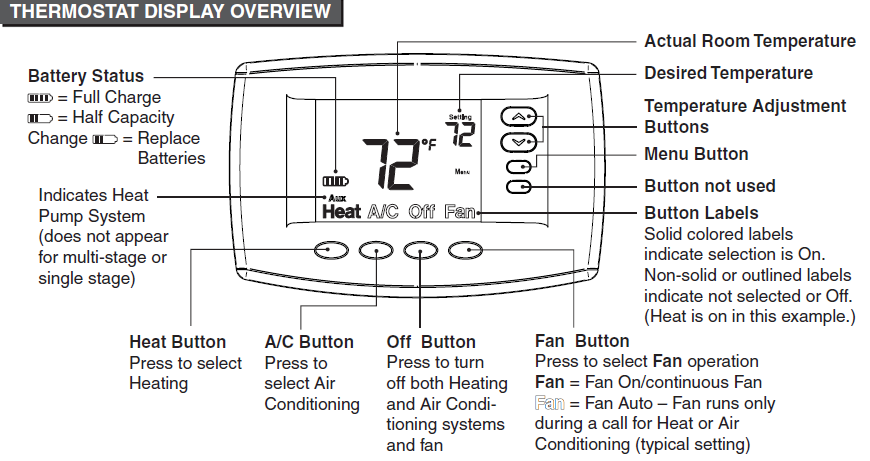

White Blue Easy Reader 1F95EZ-0671 Overview

BLUE EASY READER THERMOSTAT – PROGRAMMABLE MODE

  1. Run Indicates button to press to exit any menu and return to normal operation.
  2. Time Indicates button used to set time and date. Press button to step through the hour, minute, Year, Month, and Date.
  3. Adv Day Indicates button used when programming to advance through the days of the week.
  4. Aux Indicates system is selected as heat pump or indicates that auxiliary heating system is operating.
  5. Call for Service Will display if your heating or A/C system has diagnostic capability and needs a qualifi ed technician to service the equipment.
  6. Shows time of day. When setting the Time, displays time or date. Each press of the “Time” button will change hour, minute, Year, Month, and Date. In Sched (Schedule) mode, will show start time for period.
  7. In Normal operation, the current day of the week will be displayed. When setting the Time, indicates the day of the week selected. In Sched mode indicates the day of the week being programmed starting with Monday. Press Adv Day button to step through the days of the week.
  8. In Normal operation mode indicates the current Program period “Morn, Day, Eve, or Night”. In Sched mode will indicate the period of the day being programmed
  9. Hold Temp Indicates the program schedule is temporarily overridden. The thermostat will maintain the current desired temperature for a two hour period. “Hold” will be displayed when the thermostat is placed in permanent hold using the Hold button.
  10. Limit Is displayed when the desired temperature is adjusted with the or keys to the temperature limit selected in the setup menu.
  11. Hold Copy Menu Menu indicates button to press to access the programming and time setting functions or to enter the Confi guration menu. Hold indicates button to press to enter permanent Hold. Copy is used in programming.
  12. Sched Indicates button to press to enter Sched mode to enable setting of program schedule. In Hold or Hold Temp mode, “Run Sched” indicates button to press to return to Run mode.

 SETUP GUIDE FOR PROGRAMMABLE OPERATING MODE

To change your thermostat to be a Programmable, Item 14, Schedules per Week, in Confi guration Menu must be changed from P0 to P7. See page 18-19, “Setting Up Your Thermostat Options.”

SET CURRENT TIME AND DAY

  1. On the Home display in Heat or A/C, press Menu button to display additional button choices
  2. Press the Time button to display hour and A or P in the clock display
  3. Press the UP or DOWN button to reach the correct hour and A (AM) or P (PM).
  4. Press Time to display the minutes.
  5. Repeat steps 3 and 4 to set minute(s), Year, Month and day of week.
  6. Press Run to return to home screen and run the preset program that meets Energy Star guidelines.

ENERGY SAVING PRE-PROGRAM

This thermostat is set up for 7 independent day programming with 2 or 4 time/temperature periods per day. If the factory programming meets your needs skip to page 16, using your thermostat. If you wish to change the heating or A/C schedules, please proceed to the “Programming Your Thermostat” section.

Factory Pre-Programmed schedule for the default two period Day / Night programs



Day



Nig

ht

Heating Program

6:00 AM

70°F

10:00 PM

62°F

A/C Program

6:00 AM

75°F

10:00 PM

78°F

Factory Pre-Programmed schedule for four periods per day, all days of the week



Wake Up (Morning)

Leave For Work (Day)

Return Home (Evening)

Go To Bed (Night)

Heating Program

6:00 AM

70°F

8:00 AM

62°F

5:00 PM

70°F

10:00 PM

62°F

A/C Program

6:00 AM

75°F

8:00 AM

83°F

5:00 PM

75°F

10:00 PM

78°F

PROGRAMMING White Rodgers White Blue Easy Reader 1F95EZ-0671

HEATING AND A/C WORKSHEET

The Heating and A/C Worksheet on page 14 allows you to pencil in your own program times and temperatures. Factory settings are listed on Monday (for Monday thru Friday), Saturday and Sunday. If you are re-programming all 7 days, fi ll in all lines with the times and temperatures you want. Use this worksheet as a guide to reprogram the thermostat. Keep the following guidelines in mind when planning your program.

  • In Heating, lower temperatures will save energy.
  • In A/C, higher temperatures will save energy.

COPY PROGRAM

When programming your thermostat, you may copy the program from one day to another day. To copy a program:

  • In Sched mode, enter the program for the day.
  • Press Copy. “Copy” will begin to fl ash and the day being copied will show.
  • Press Advance Day to select the day to copy to. This day will be fl ashing.
  • Press Copy. “Copy” will stop fl ashing and the day copied to will also stop fl ashing. The day copied from will disappear.

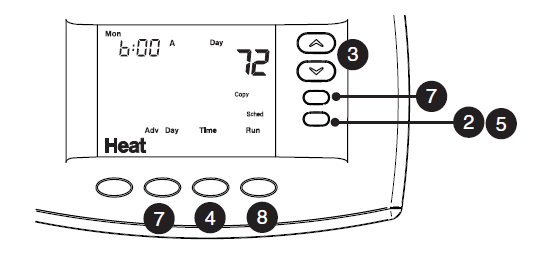

ENTER HEATING PROGRAM

  •  In Heat mode, press the Menu button to display additional button choices.
  • Press Sched button. The display will show the day being programmed and the time and desired temperature for the period. Either “Day” for two period confi guration or “Morn” for four period configuration will be displayed to indicate the period. “Heat” is displayed indicating the mode being programmed.PROGRAMMING White Rodgers White Blue Easy Reader 1F95EZ-0671
  • Press the UP or Down button to change the temperature to your selected temperature for the 1st heating period (Day or Morn).
  • Press the Time button to toggle between Time and Temperature. Press the UP or Down buttons to adjust the start time for the period. The time will change in 15 minute increments.
  • After you have set the time and the temperature for the period to begin, press Sched to advance to the next program period.
  • Repeat steps 3 through 5 until all of the program times and temperatures are set for all program periods for that day.
  • Use the Copy button to copy current day’s program to any other day as described above. Or press Adv Day and repeat steps 3 through 6 until programs for all days are entered.
  • When programming is complete and all of the times and temperatures match your desired heating schedule, press Run. The thermostat will now run your heating program.

ENTER A/C PROGRAM

Press A/C to place thermostat in air conditioning mode. Set the A/C program following the “Enter Heating Program” steps.

  1. Press Heat or A/C button to turn your system On. Press Off to turn Heating and A/C Off. Fan will turn Off if it is On.
  2. Press Run Up or Down Run Sched to begin running thermostat program
  3. Press either the or buttons to change the desired room temperature “setting”.
  4. Press the Fan button to select the desired fan operation.

AUXILIARY HEATING

Programmable or Non-Programmable

If your heating or A/C system is a heat pump, the system automatically activates Auxiliary Heating when the outside temperature is too cold for the heat pump to effi ciently heat the home. You can manually activate the auxiliary heating by pressing and holding the Heat button until Aux changes to Aux. To turn the manual auxiliary off press the Heat button again.

TEMPORARY PROGRAM OVERRIDE
This feature will override the program temperature setting for a two hour period. Press UP or Down buttons to adjust the temperature. The display will show “Hold Temp” to the left of the desired temperature. To cancel the temporary setting and return to the program, press Run. Example: If you turn up the heat during the morning program, it will be automatically lowered later, when the temporary hold period ends.

PERMANENT TEMPERATURE HOLD
The Permanent Temperature Hold feature bypasses the program and allows you to adjust the temperature manually as needed. The temperature you set in Hold will be maintained indefi nitely. Press or buttons to adjust the temperature. The display will show “Hold Temp” to the left of the desired temperature. Press the Hold button to maintain the new temperature.
