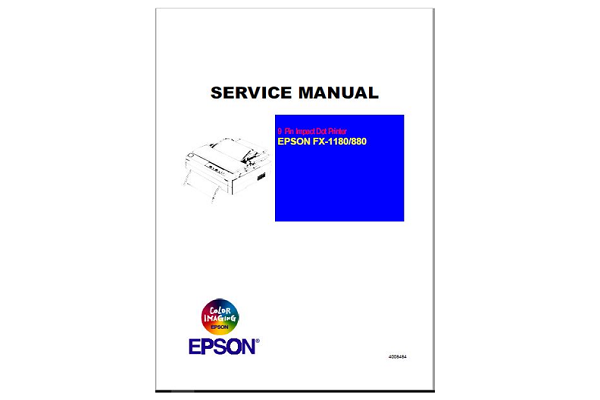

Epson FX1180 Service Manual

About Epson FX1180 Service Manual

Epson FX1180 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of FX1180/880. The instructions and procedures included herein are intended for the experienced repair technicians, and attention should be given to the precautions on the preceding page. The chapters are organized as follows:

Epson FX1180 Table Of Content

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of electrical and mechanical operations of the product.
CHAPTER 3. TROUBLESHOOTING
Provides the step-by-step procedures for troubleshooting.
CHAPTER 4. DISASSEMBLY AND ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.
CHAPTER 5. ADJUSTMENTS
Provides Epson-approved methods for adjustment.
CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.
APPENDIX
Provides the following additional information for reference:

  • Connector pin assignments
  • Electric circuit boards components layout
  • Exploded diagram
  • Electrical circuit boards schematics

Epson FX1180 SPECIFICATION

The FX-1880/880 is a small foot, 9 pins serial impact dot matrix printer. The main specification is as follows;

HARDWARE SPECIFICATIONS

Print method 9 pins Impact dot matrix
Print pin arrangement 9 x 1
Print pin diameter 0.29 mm ( 0.0114 inch )

  • When the power supply voltage drops to the lower limit, the printer stops printing once and then starts printing rest data on that line again more slowly than before.
  • When the head temperature rises to the upper limit, the printer stops printing once. If the head temperature falls down to the normal level, it begins to print again more slowly than before.

Epson FX1180 ELECTRICAL SPECIFICATION

120 V version

Rated voltage AC 120 V
Input voltage range AC 103.5 to 132 V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.7 A ( Max. 1.6 A )
Power consumption FX-1180: Approx. 36 W ( ISO/IEC10561 Letter pattern)
FX-880: Approx. 34 W ( ISO/IEC10561 Letter pattern)
Energy Star compliant
Insulation resistance Min. 10 MW ( between AC line and chassis)
Dielectric strength AC 1000 V rms 1 min. or AC 1200 V rms 1 sec.(between AC line and
chassis)

230 V version

Rated voltage AC 220 to 240 V
Input voltage range AC 198 to 264 V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.4 A ( Max. 0.9 A )
Power consumption FX-1180: Approx. 36 W ( ISO/IEC10561 Letter pattern)
FX-880: Approx. 34 W ( ISO/IEC10561 Letter pattern)
Energy Star compliant
Insulation resistance Min. 10 MW ( between AC line and chassis)
Dielectric strength AC 1000 V rms 1 min. or
AC 1200 V rms 1 sec. ( between AC line and chassis)
UPS Version
Rated voltage AC 100 to 120 V / AC220 to AC240V
Input voltage range AC 90 to 132 V / AC198 to 264V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.8A (Max. 20.A) / 0.5 A (Max. 1.0 A )
Power consumption Approx. 38 W ( ISO/IEC10561 Letter pattern)
Energy Star compliant
Insulation resistance Min. 10 MW ( between AC line and chassis, DC500V)
Dielectric strength AC 1500 V rms 1 min. ( between AC line and chassis)

Read More Epson FX1180 Service Manual pdf Below
