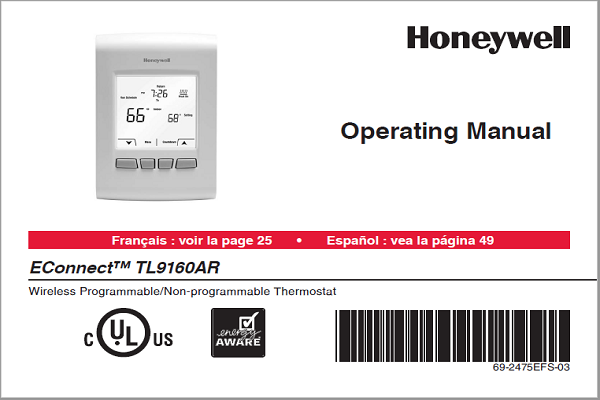

Honeywell EConnect TL9160AR Manual

About Honeywell EConnect TL9160AR Operating Manual PDF

Do you know your thermostat configuration?
To know whether your new thermostat is configured in programmable mode or non-programmable mode, look for the time and day display on the thermostat screen. If the time and day appear on the screen, the thermostat is configured as a programmable thermostat. Refer to the table of contents on the next page for sections that apply to your thermostat configuration.

Honeywell EConnect TL9160AR Operating Manual Table of Content

Basic operation

Thermostat display in non-programmable mode......................................4
Setting the temperature........................................................................5
Countdown mode.................................................................................6

Programmable mode

Thermostat display in programmable mode............................................8
Following the heating schedule.............................................................9
Setting the time and the date..............................................................10
Modifying the heating schedule...........................................................12
Temporary Hold..................................................................................14
Permanent Hold..................................................................................15
Copying the heating schedule..............................................................16

Appendices

Advanced setup..................................................................................18
Replacing the batteries.......................................................................20
In case of difficulty..............................................................................21
Three-year limited warranty..................................................................22
Regulatory information........................................................................23

Honeywell EConnect TL9160AR Countdown mode Setting

Press Countdown to set a new temperature and to select the time you wish to hold this temperature setting. The thermostat will return to its previous or programmed temperature setting at the end of the countdown time. The countdown time is selectable from 15 minutes to 14 days.
The Countdown mode is not available when the thermostat is locked.

Honeywell EConnect TL9160AR Countdown mode Setting

Honeywell EConnect TL9160AR Thermostat display in programmable mode

The thermostat displays the current time and day when the thermostat is configured in programmable mode. When the thermostat is following the schedule, it also displays the current period of the schedule: Wake, Leave, Return or Sleep. The period is not displayed when the thermostat is placed in Temporary Hold or Permanent Hold.

Honeywell EConnect TL9160AR Thermostat display in programmable mode

Honeywell EConnect TL9160AR Following the heating schedule

Run Schedule appears on the screen when the thermostat is following the programmed schedule. Your thermostat has been programmed with an energy-saving schedule which can reduce your heating expenses.

Honeywell EConnect TL9160AR Following the heating schedule

The schedule consists of 4 periods per day, which represents a typical weekday. However, you can program the thermostat to skip (cancel) the periods that do not apply to your situation. For example, Leave and Return periods are skipped for the weekend in the default schedule. You can choose a different program every day; i.e., each period can have a different starting time and a different temperature every day.

Honeywell EConnect TL9160AR Setting the time and the date

Honeywell EConnect TL9160AR Setting the time and the date

Readmore and Download Honeywell EConnect TL9160AR Manual PDF Below
