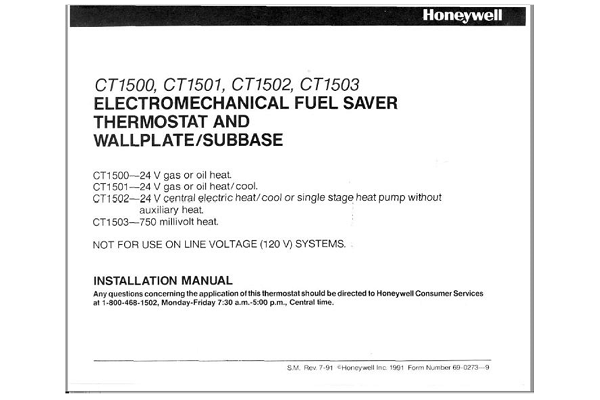

Honeywell CT1500, CT1501, CT1502, CT1503 Installation Manual

About Honeywell CT1500, CT1501, CT1502, CT1503 Installation Manual

ELECTROMECHANICAL FUEL SAVER THERMOSTAT AND WALLPLATEEUBBASE
CTI500-24 V gas or oil heat.
CTl501-24 V gas or oil heat/cool.
CTI502--24 V central electric heat/cool or single stage heat pump without auxiliary heat.
CTI 503-750 millivolt heat.
NOT FOR USE ON LINE VOLTAGE (120 V) SYSTEMS

Honeywell CT1500, CT1501, CT1502, CT1503 UNPACK THERMOSTAT

  • Remove and discard shipping wrap. Save package of screws, instructions and receipt
  • Remove thermostat cover by lifting up from The Bottom
  • Carefully remove insert protecting switch bulbs.
  • Loosen two captive mounting screws, and separate wallplate or subbase from back of thermostat base.

Readmore and Download Honeywell CT1500, CT1501, CT1502, CT1503 Installation Manual PDF Below
