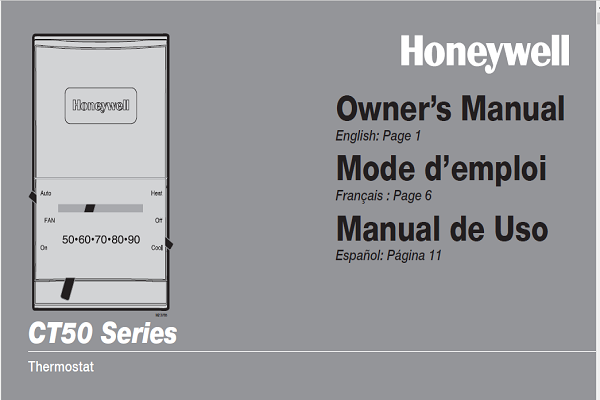

Honeywell CT50 Series Owners Manual

Honeywell CT50 Series Owners Manual

Vertical Mount:
CT50 (24 Vac heating systems)
CT51 (24 Vac heating and cooling systems)
CT53 (750 mV or 12Vdc heating systems)
Horizontal Mount:
CT54 (24 Vac heating systems)
CT55 (24 Vac heating and cooling systems)

Honeywell CT50 Series Temperature Control Range

  • 45°–95°F (7°–35°C)
  • 35°–85°F (2°–29°C); select models; for garages or other outbuildings.

Honeywell CT50 Series Getting started

Check package contents:

  • Thermostat
  • Wall anchors & screws (2 each)
  • Wire labels

Before you begin, make sure you have:

  • No. 2 Phillips & small pocket screwdrivers
  • Hammer
  • Level (optional)
  • Pencil
  • Drill and bit (3/16” for drywall, 7/32” for plaster)

Label wires and remove old wallplate

Use a screwdriver to disconnect wires one by one. As you disconnect each wire, wrap it with the label matching the letter on your old thermostat. (Adhesive labels are supplied in your thermostat package.)

Remove the old wallplate only after all wires are labeled. Be careful not to let loose wires fall into the wall opening.

Wrap supplied labels securely around each wire. Do not let wires fall into wall opening!

Honeywell CT50 Label wires
