Honeywell T410A,B Line Voltage Electric Heat Thermostats Manual

Honeywell T410A,B Line Voltage Electric Heat Thermostats Installation Manual

Your Honeywell T410A,B Thermostat Your new Honeywell T410 Electric Heating Thermostat provides line voltage control of a radiant cable, electric baseboard, and resistive-rated fan forced heaters within the ratings listed above.

Honeywell T410A,B PREPARATION Installation

  • Proper installation of your Honeywell thermostat will occur if you follow these instructions STEP-BYSTEP. It is recommended that as you read, understand and complete each step, you check ✓ it off with pencil or pen.
  • Check thermostat suitability for your home’s system by reviewing the ratings listed above. Make certain that your heating system is working, especially if it has been inoperative for a length of time. If the system does not work, contact your local electrician for assistance.
  • Carefully unpack your new thermostat. To avoid damage to the sensing element, do NOT remove the thermostat cover until wiring has been completed.
  • Save packages of screws, instructions, receipt and proof-of-purchase.

Honeywell T410A,B REMOVE OLD THERMOSTAT

WARNING
Begin by turning off power to the heating circuit at the main service panel.

  • Remove cover of old thermostat—cover normally snaps off when pulled firmly from the bottom. If it resists, check for a screw that locks the cover.
  • Loosen screws holding thermostat base to outlet box and lift away.
  • Disconnect wires from old thermostat. As you disconnect each wire, tape the end and label it with the letter of the terminal designation to make reconnection to new thermostat easier.
  • Check the old insulation for cracks, nicks or fraying, and apply high quality plastic tape where necessary for adequate insulation.
  • Retain the old thermostat for reference purposes and until your new thermostat is functioning smoothly.

WIRE AND MOUNT NEW THERMOSTAT Honeywell T410A,B

  • Remove thermostat cover by grasping the top and bottom ends with fingers, and pulling outward.
  • Connect wires to the thermostat as shown in the applicable wiring diagram. Push the wires into the outlet box, and insert the thermostat into the box for mounting by pushing against top and bottom of the thermostat base.

IMPORTANT: Do not press on setting knob.

  • Secure the thermostat to the box with the two captive mounting screws provided.
  • Replace thermostat cover.
  • Set knob to desired room temperature.

IMPORTANT: Rough handling or strong pressure can damage knob or sensing element, and change calibration.

WIRE AND MOUNT NEW THERMOSTAT Honeywell T410A,B



  1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
  2. BREAKS ON POSITIVE OFF.
  3. EXPOSED UNUSED LEADWIRES TO BE PROPERLY INSULATED.
  4. THERMALLY ACTIVATED—BREAKS ON TEMPERATURE RISE. MAKES ON TEMPERATURE FALL.

CHECK OUT THERMOSTAT

  • Turn on the power to the heating system.
  • Turn setting knob all the way clockwise ; listen for clicking sound as switch makes contact. Electric heater should begin operation.
  • Turn knob all the way counterclockwise ; listen for clicking sound as switch breaks contact. Electric heater should shut off.

SETTING Honeywell T410A,B THERMOSTAT

  • Begin with setting knob at 70°F (20°C) on the scale.
  • If this setting is not satisfactory after at least two hours of operation, turn setting knob upscale to raise the temperature, or downscale to lower the temperature. Move knob only a degree each time.

Honeywell T410A,B TROUBLESHOOTING

Your Honeywell thermostat requires little or no attention. Most problems can generally be traced to the following:

Symptom

Checkout

Action

No heat.

Make sure power is on at main service panel. Turn the temperature setting knob fully clockwise    .

Heater should start to warm up within two minutes. If not, contact qualified electrician to check thermostat and heater.

Improper connections to thermostat.

With power to circuit OFF, tighten all wiring connections. Repair any frayed or broken wires.

Other.

Contact a qualified electrician for assistance.

Heater never turns off.

Turn temperature setting knob fully counterclockwise      .

Heater should start to cool within minutes. If not, turn off power at the main service panel, and contact qualified electrician.

Thermostat setting and thermometer reading disagree.

Thermostat affected by drafts or radiant heat.

Contact electrician to change the location. The thermostat should be about 5 ft (1.5m) above the floor and on an inside wall.



Readmore and Download Honeywell T410A,B Thermostats Installation Manual PDF Below

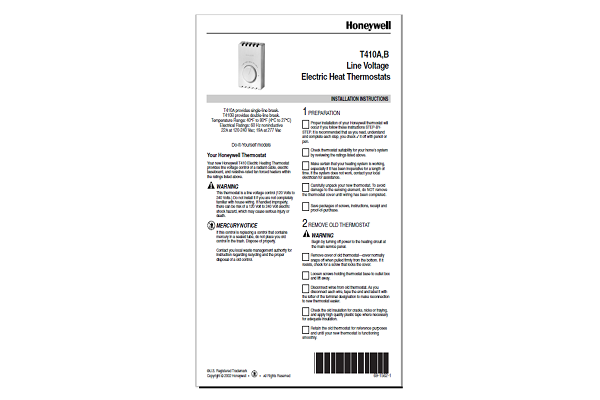

Honeywell T410A,B Thermostats Installation Manual
