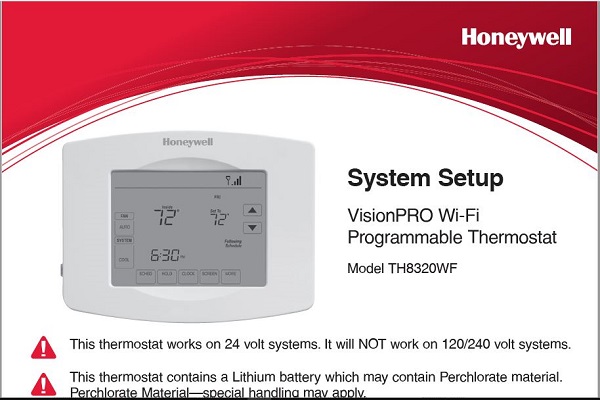

System SetupVisionPRO Wi-Fi Programmable Thermostat Model TH8320WF
- This thermostat works on 24 volt systems. It will NOT work on 120/240 volt systems.
- This thermostat contains a Lithium battery which may contain Perchlorate material. Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
- MERCURY NOTICE: Do not place your old thermostat in the trash if it contains mercury in a sealed tube. Contact the Thermostat Recycling Corporation at www. thermostat-recycle.org or 1-800-238-8192 for information on how and where to properly and safely dispose of your old thermostat.
- NOTICE: To avoid possible compressor damage, do not run air conditioner if the outside temperature drops below 50°F (10°C).
Honeywell TH8320WF Table of Contents
Wiring.......................................................................2
Setting Functions and Options....................................3
System Setup...........................................................3
Installer System Test.................................................7
Troubleshooting.........................................................8
Honeywell TH8320WF WIring
Honeywell TH8320WF Terminal Designations
Conventional Terminal Letters:
Y2 2nd stage compressor contactor.
W2 2nd stage heat relay.
K Optional wirer save module.
S1 Optional outdoor or remote sensor.
S2 Optional outdoor or remote sensor.
Rc Cooling power. Connect to secondary side of cooling system transformer.
R Heating power. Connect to secondary side of heating system transformer.
W 1st stage heat relay.
Y 1st stage compressor contactor.
G Fan relay.
C Common wire from secondary side of cooling transformer (if 2 transformers).
Heat Pump Terminal Letters:
Y2 2nd stage compressor contactor.
L Heat pump reset (powered continuously when System is set to Em Heat; system monitor when set to Heat, Cool or Off).
E/Aux Auxiliary/Emergency heat relay.
K Optional wirer save module.
S1 Optional outdoor or remote sensor.
S2 Optional outdoor or remote sensor.
Rc Cooling power. Connect to secondary side of cooling system transformer.
R Heating power. Connect to secondary side of heating system transformer.
O/B Changeover valve for heat pumps.
Y 1st stage compressor contactor.
G Fan relay.
C Common wire from secondary side of cooling system transformer.
Honeywell TH8320WF Setting functions and options
You can change options for a number of system functions. Available functions depend on the type of system you have. The functions, designated with four-digit numbers, along with available options are described on pages 3–6 This thermostat is pre-set for a single-stage heating/cooling system. Setting function 0170 for a heat pump will adjust the default settings.
- Press SYSTEM.
- Press and hold the two blank keys on either side of the center blank key for approximately five seconds until screen changes.
- Cycle through the functions, press st next to the four digit number on the left.
- As needed, change options for any function by pressing st next to the number on the right.
- When you have made all changes, press DONE to save and exit.
