Honeywell Thermostat T834 User Manual

About Honeywell Thermostat T834 User Manual

This manual covers the following models:
Horizontal Mount: Honeywell T8034N • Vertical Mount: Honeywell T834N/T834L

This thermostat provides control of 24 Vac single-stage heating and cooling systems.

Honeywell Thermostat T834 Product application

System Types

  • Gas, oil, or electric heat with air conditioning
  • Warm air, hot water, high-efficiency furnaces, heat pumps, steam, gravity
  • Heat only
  • Heat only with fan
  • Cool only

System Settings

  • Heat, Off, Cool (T834N)
  • Off, Cool (T834L)

Fan Settings

  • Auto, On

Honeywell Thermostat T834 Specifications

Temperature Range

  • 50° to 90°F (10° to 32°C)

Operating Ambient Temperature

  • 0° to 120°F (-18° to 49°C)

Operating Relative Humidity

  • 5% to 90% (non-condensing)

Dimensions (vertical model)

  • 2.88W x 4.75H x 1.5D (inches)
  • 73W x 121H x 38D (mm)

Dimensions (horizontal model)

  • 4.75W x 2.88H x 1.5D (inches)
  • 121W x73H x 38D (mm)

Honeywell Thermostat T834 Electrical Ratings

Terminal                   Voltage (50/60Hz) Running                 Current
W Heating                      20-30 Vac                                 0.02-1.2 A
Y Cooling                       20-30 Vac                                 0.02-1.2 A
G Fan                            20-30 Vac                                 0.02-0.6 A
O Cooling
Changeover                    20-30 Vac                                  0.02-0.5 A
B Heating
Changeover                    20-30 Vac                                  0.02-0.5 A

Readmore and Download Honeywell Thermostat T834 User Manual PDF Below

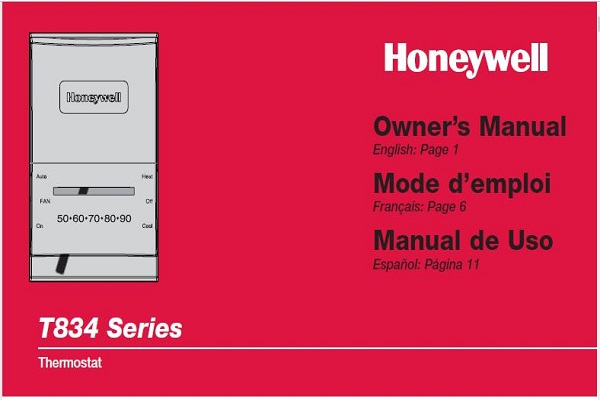

Honeywell Thermostat T834 Manual
