Seca 674_675 NEC2 Service Manual

Seca 674/675 NEC2 Service Manual

General Information Seca 674 NEC2 Service Manual

These service instructions are intended for specialist staff responsible for maintenance and repair of the devices. These persons must be familiar with all the relevant electro-technical regulations and must adhere to them any time. These instructions are not suitable for users without specialist knowledge. These instructions describe how to service the devices [ 374| 376| 378| 634| 635| 644| 645| 656| 657| 664| 665| 674| 675| 676| 677| 684| 685| 703| 704| 264|274| 284|285|954| 957| 959| 963] equipped with NEC2 electronic modules. The device types for which these instructions apply are listed in the section headings. There are some identical models with NEC1 electronic modules. These instructions are not valid for those types. What is the structure of this document and how should you read it? Section 1 provides a short overview of the most important points for service. We recommend you should read it completely. Section 2 deals with the maintenance of the devices, i.e. work that may have to be carried out more frequently. This section can be read as and when required. Troubleshooting is covered in section 4, where you find detailed descriptions of various measurements intended to identify specific errors. Starting point for troubleshooting is section 3, which includes an overview of error descriptions and the inspection steps required to identify them.

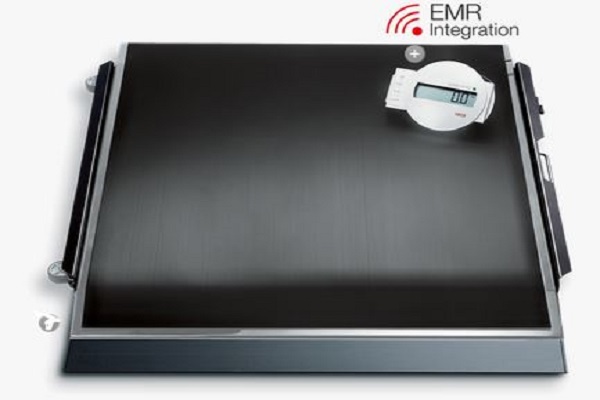

Seca 674 NEC2 EMR ready electronic platform scale

This electrically-operated, generously-sized wheelchair/ platform scale is multifunctional. It weighs patients in care, especially heavy patients, persons in wheelchairs and seated patients with circulatory trouble, even during dialysis. The flexible cable remote display can be placed anywhere (e.g. on a desk or table) for convenient read-out and operation of the controls.
A wall mounting is also provided. Transport castors and a handle make the seca 674 mobile. Measurements can be transmitted wirelessly to a PC or EMR system immediately after weighing.

Technical Data Seca 674

Capacity: 800 lbs, 360 kg
Graduation (g): 50 g / 0,1 lbs
Power supply: Power adapter
Measure (W x H x D): 904 x 70 x 1064 mm , 35,6 x 2,8 x 41,9 inch
Net weight: 27 kg , 59,5 lbs
Functions and Properties: Overload protection, Transport custors, TARE, Auto-clear, Pre-TARE, HOLD, Auto-HOLD, BMI, kg/lbs/sts switch-over, RESET, Damping
CE: CE 0123


Read More Seca 674_675 NEC2 Service Manual Below

Seca 674 Service Manual

Download PDF
