Seca 202 Measuring Rod User Manual

Seca 202 Service Manual

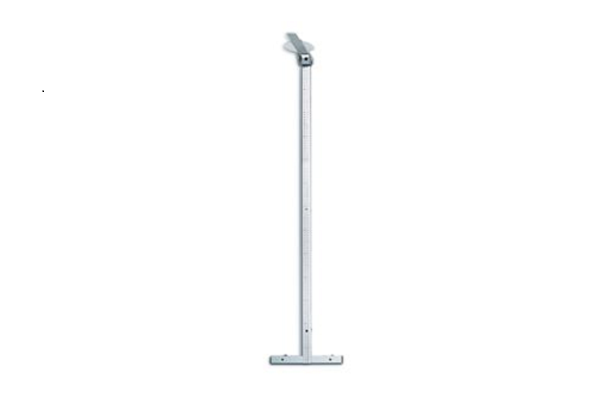

The measuring rod is to stand on the floor and is fitted to a wall with two screws. It is possible to compensate for protruding walls or attachments (such as skirting boards or cable ducts) with a maximum of 5 spacer washers per screw.The measuring rod consists of two telescopic elemen-tes:•   Lower telescopic element: Measuring range 1:6 cm -130.5 cm (3 inch - 51.4 inch)•   Upper telescopic element: Measuring range 2:130.5 cm - 200 cm (51.4 inch - 78 inch)The head slide of the measuring rod is locked at the top of the upper telescopic element to measure per-sons taller than 130.5 cm (51.4 inch). The head slide needs to be released to measure persons smaller than 130.5 cm (51.4 inch). The measuring flap can be folded down.

Read More Seca 202 Service Manual on PDF Below
