LUX LV1-LV2-LV3 Thermostat Manual PDF

LUX LV1-LV2-LV3 Thermostat Manual

LUX LV1-LV2-LV3 Spesification

LUX LV1

SINGLE POLE: Heating Only
ELECTRICAL RATINGS:
22 AMPS @ 125 VAC (2600 W)
22 AMPS @ 250/277 VAC (5000 W)
0.75 HP @ 125 VAC
1.50 HP @ 250/277 VAC
UL LISTED
SETTING RANGE:
50°-90°F (10°-32°C)

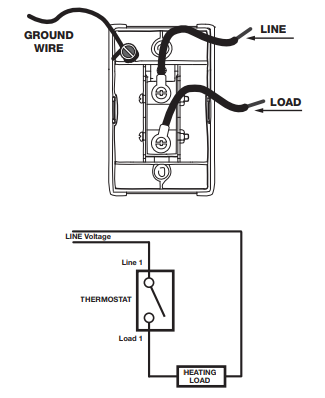

LUX LV1 Wiring

LUX LV2

DOUBLE POLE: Heating Only
ELECTRICAL RATINGS:
22 AMPS @ 125 VAC (2600 W)
22 AMPS @ 250/277 VAC (5000 W)
0.75 HP @ 125 VAC
1.50 HP @ 250/277 VAC
UL LISTED
SETTING RANGE:
50°-90°F (10°-32°C)

LUX LV2 Wiring

LUX LV3

SINGLE POLE: Cooling Only
ELECTRICAL RATINGS:
22 AMPS @ 125 VAC (2600 W)
22 AMPS @ 250/277 VAC (5000 W)
0.75 HP @ 125 VAC
1.50 HP @ 250/277 VAC
UL LISTED
SETTING RANGE:
50°-90°F (10°-32°C)

LUX LV3 Wiring

LUX LV1-LV2-LV3 Location

The thermostat should be mounted in a standard 2 inch X 3 Inch Electrical Outlet Box. For Ease of installation, use a “deep” style box to assist in allowing room for the excess wires. A mounting location should be chosen where it will be constantly exposed to the average room temperature. The thermostat should also be located away from the following: concealed hot or cold water pipes, air ducts, hallway drafts, fireplaces, or stairways, to be able to sense temperature and control your heating or cooling equipment properly. For the heating only models, avoid positioning this thermostat in a location which is directly above any baseboard heating components, as this will cause erratic temperature control.

LUX LV1-LV2-LV3 Installation

[1] Disconnect the supply power before removing your old thermostat (if applicable) and keep it off until after you have completed installing this thermostat. Double check that the thermostat is rated for the voltage and amperage to be switched. [2] If replacing an old thermostat, remove it carefully to avoid damaging the wires or their insulation. Check the existing wire insulation for cracks, nicks, or fraying and apply certified electrical tape where necessary to achieve adequate insulation, or replace the wires in an approved fashion. [3] For all three heating or cooling models, turn the dial fully counter-clockwise prior to installing. [4] Use the diagrams shown above as a guide to ensure a proper connection between your voltage supply and your heating or cooling components, using the appropriate LINE and LOAD designations. [5] Attach the connection wires using appropriately sized solderless wire connectors (provided). Be sure that ALL wire connections are securely tightened. [6] Ensure that the thermostat is appropriately connected to the ground wire at the grounding screw on the rear of the thermostat housing. [7] Carefully bend all of the solid conductors and push the excess wire length to the rear of the electrical box to allow enough room for the rear portion of the thermostat to be recessed into the box. Be sure that no portions of the exposed ground wire are allowed to accidentally come in contact with the LINE or LOAD terminals on the rear of the thermostat. [8] Carefully push the thermostat all the way into the box opening, and mount the thermostat to the box using appropriately sized mounting screws. Ensure that the mounting screws will not project too far into the box and come in contact with any of the wires causing a short circuit. [9] Once complete, turn the power back on to your heating or cooling equipment and turn dial to the desired temperature setting.

Readmore and Download LUX LV1-LV2-LV3 Thermostat Manual

Title : LUX LV1-LV2-LV3 Thermostat Manual
Format : PDF
Pages : 2 Pages
Language : English
File Size : 1 MB
